MiniSense 100 Vibration Sensor
off-axis sensitivity
The sensitivity of the Minisense 100 follows a cosine law, when rotated horizontally around its axis,
or vertically around its mid-point. At 90 degrees rotation in either plane, both baseline sensitivity and
sensitivity at resonance are at a minimum. In theory, sensitivity should be zero in this condition. It is
likely that some sensitivity around the resonance frequency will still be observed – but this may be
unpredictable and is likely to be at least -16 dB with reference to the on-axis response. Note that the
sensitivity at 30 degrees rotation is -1.25 dB (87% of on-axis response), at 60 degrees, it falls to -6
dB (50%).
The plots below show the change in sensitivity observed for either:
1) Rotation about major axis of sensing element, or
2) Rotation about mid-point of sensing element.

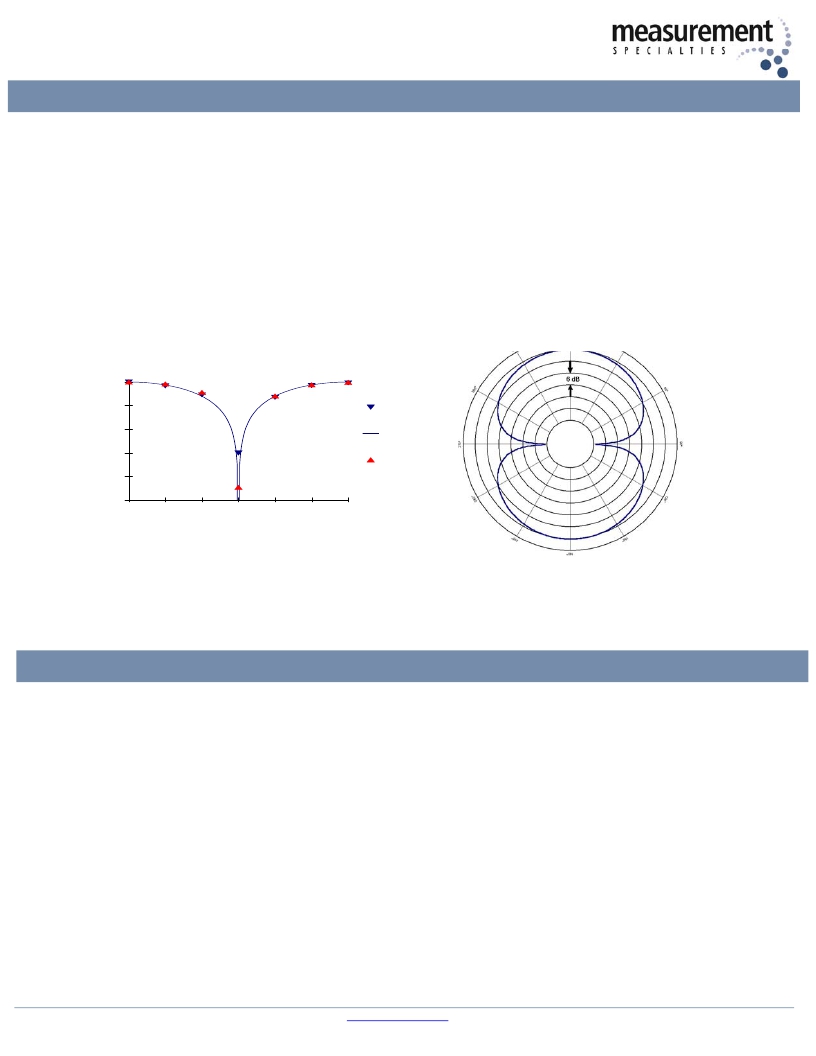

Off-axis Response
0
-10
-20
-30
-40
-50
axial
theory
vertical
0
30
60
90
120
150
180
Rotation angle (deg)
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not
convey to the purchaser of such devices any license under the patent rights to the manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice
to any product herein. Measurement Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does
Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation
consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by
customer’s technical experts. Measurement Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
ordering information
Description
Horizontal Mounting
Vertical Mounting
Horizontal Mounting Reduced Height
Model No.
LDTC-H
LDTC-V
LDTC-RH
Part No.
1005939-1
1005940-1
1006015-1
North America
Measurement Specialties, Inc.
1000 Lucas Way
Hampton, VA 23666
Sales and Customer Service
Tel: +1-800-745-8008 or
+1-757-766-1500
Fax: +1-757-766-4297
Technical Support
Email: piezo@meas-spec.com
MiniSense 100 Vibration Sensor Rev 1
Europe
MEAS Deutschland GmbH
Hauert 13
44227 Dortmund
Germany
Sales and Customer Service
Tel: +49 (0)231 9740 21
Technical Support
Tel: +49 (0)6074 862822
Email: piezoeurope@meas-spec.com
www.meas-spec.com
4 of 4
Asia
Measurement Specialties (China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District
Shenzhen, China 518107
Sales and Customer Service
Tel: +86 755 3330 5088
Technical Support
Email: piezo@meas-spec.com
05/12/2009
